YS系列臥式電機
圖片展示
產品規格
參數-1.jpg)
參數-2.jpg)
|

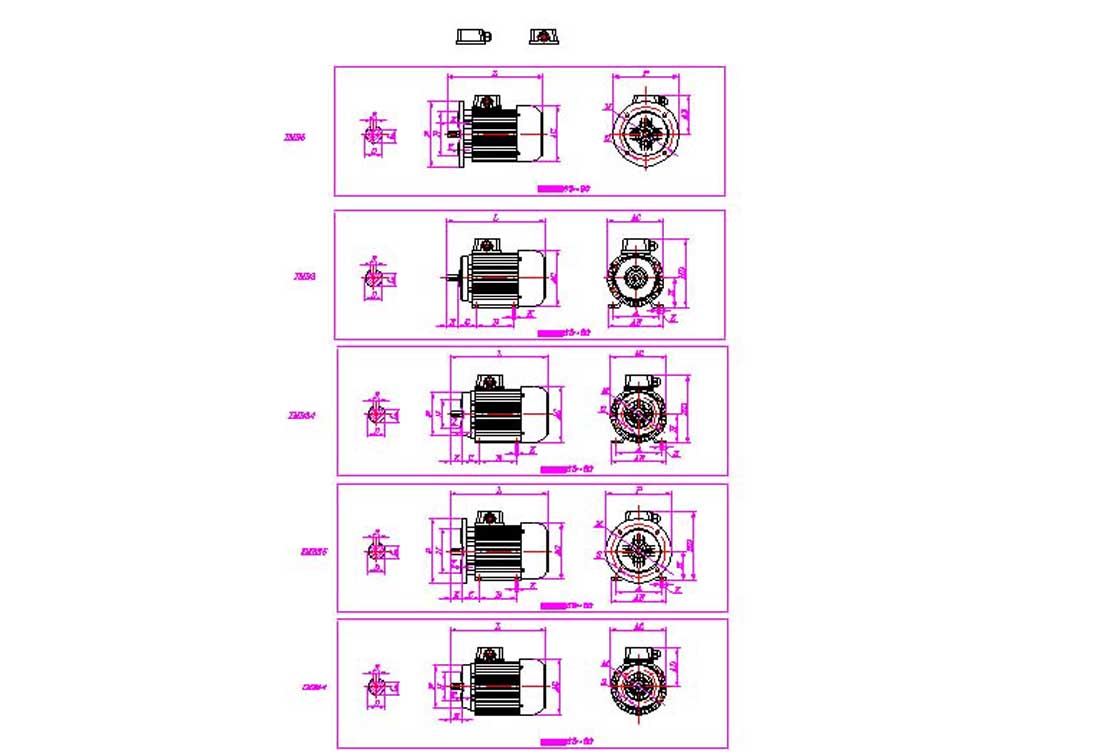

外形安裝尺寸 |
Outline & lnstallation Dimensions | ||||||||||||||||||||||||||||
|
機座尺寸 |
安裝尺寸 lnstallation Size(mm) |
安裝尺寸 lnstallation Size(mm)INB14 |
安裝尺寸 lnstallation Size(mm)IMB15 |
外形尺寸 Outline Dimension(mm) | |||||||||||||||||||||||||
|
Frame Size |
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
N |
P |
R |
S |
T |
M |
N |
P |
R |
S |
T |
AB |
AC |
AD |
HD |
L | |||
|
50 |
80 |
63 |
32 |
9 |
20 |
3 |
7.2 |
50 |
5.8 |
55 |
40 |
70 |
0 |
M5 |
2.5 |
|
|
|
|
|
|
100 |
110 |
|
|
155 | |||
|
56 |
90 |
71 |
36 |
9 |
20 |
3 |
7.2 |
56 |
5.8 |
65 |
50 |
80 |
0 |
M5 |
2.5 |
|
|
|
|
|
|
115 |
120 |
|
|
170 | |||
|
63 |
100 |
80 |
40 |
11 |
23 |
4 |
8.5 |
63 |
7 |
75 |
60 |
90 |
0 |
M5 |
2.5 |
115 |
95 |
140 |
0 |
10 |
3.0 |
130 |
130 |
115 |
185 |
230 | |||
|
71 |
112 |
90 |
45 |
14 |
30 |
5 |
11 |
71 |
7 |
85 |
70 |
105 |
0 |
M6 |
2.5 |
130 |
110 |
160 |
0 |
10 |
3.5 |
145 |
145 |
125 |
205 |
255 | |||
|
80 |
125 |
100 |
50 |
19 |
40 |
6 |
15.5 |
80 |
10 |
100 |
80 |
120 |
0 |
M6 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
160 |
165 |
135 |
235 |
295 | |||
|
90S |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
115 |
95 |
140 |
0 |
M8 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
185 |
145 |
265 |
335 | |||
|
90L |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
115 |
95 |
140 |
0 |
M8 |
3.0 |
156 |
130 |
200 |
0 |
12 |
3.5 |
180 |
185 |
145 |
265 |
360 | |||
