YC(CO)系列電機
圖片展示
產(chǎn)品規(guī)格
YC系列
|
型號 |
機座號 |
(HP) |
功率(W) |
電壓(V) |
電流(A) |
頻率(Hz) |
轉(zhuǎn)速 |
效率 |
功率因數(shù) |
Tst/Tn |
Tm/Tn |
Ist(A) |
|
YC711-2 |
71 |
1/4 |
180 |
220 |
1.9 |
50 |
2800 |
60 |
0.72 |
3 |
1.8 |
12 |
|
YC712-2 |
1/3 |
250 |
2.4 |
2800 |
64 |
0.74 |
3 |
15 |
||||
|
YC711-4 |
1/6 |
120 |
1.9 |
1400 |
50 |
0.58 |
3 |
9 |
||||
|
YC712-4 |
1/4 |
180 |
2.5 |
1400 |
53 |
0.62 |
2.8 |
12 |
||||
|
YC801-2 |
80 |
1/2 |
370 |
3.4 |
2800 |
65 |
0.77 |
2.8 |
21 |
|||
|
YC802-2 |
3/4 |
550 |
4.7 |
2800 |
68 |
0.79 |
2.8 |
29 |
||||
|
YC801-4 |
1/3 |
250 |
3.1 |
1400 |
58 |
0.63 |
2.8 |
15 |
||||
|
YC802-4 |
1/2 |
370 |
4.3 |
1400 |
62 |
0.64 |
2.5 |
21 |
||||
|
YC90S1-2 |
90 |
3/4 |
550 |
4.7 |
2800 |
68 |
0.79 |
2.8 |
29 |
|||
|
YC90S2-2 |
1 |
750 |
6.1 |
2800 |
70 |
0.8 |
2.5 |
37 |
||||
|
YC90L-2 |
1.5 |
1100 |
8.9 |
2800 |
72 |
0.8 |
2.5 |
60 |
||||
|
YC90S1-4 |
1/2 |
370 |
4.3 |
1400 |
62 |
0.64 |
2.5 |
21 |
||||
|
YC90S2-4 |
3/4 |
550 |
5.5 |
1400 |
66 |
0.69 |
2.5 |
29 |
||||
|
YC90L-4 |
1 |
750 |
6.9 |
1400 |
68 |
0.73 |
2.5 |
37 |
||||
|
YC90S-6 |
1/3 |
250 |
4.2 |
960 |
54 |
0.5 |
2.5 |
20 |
||||
|
YC90L-6 |
1/2 |
370 |
5.3 |
960 |
58 |
0.55 |
2.5 |
25 |
||||
|
YC100L1-2 |
100 |
2 |
1500 |
11.4 |
2800 |
74 |
0.81 |
2.5 |
80 |
|||
|
YC100L2-2 |
3 |
2200 |
16.5 |
2800 |
75 |
0.81 |
2.2 |
120 |
||||
|
YC100L1-4 |
1.5 |
1100 |
9.5 |
1400 |
71 |
0.74 |
2.5 |
60 |
||||
|
YC100L2-4 |
2 |
1500 |
12.5 |
1400 |
73 |
0.75 |
2.5 |
80 |
||||
|
YC100L1-6 |
3/4 |
550 |
7 |
960 |
60 |
0.6 |
2.5 |
35 |
||||
|
YC100L2-6 |
1 |
750 |
9 |
960 |
61 |
0.62 |
2.2 |
45 |
||||
|
YC112M-4 |
112 |
3 |
2200 |
17.8 |
1400 |
74 |
0.76 |
2.2 |
120 |
|||
|
|
|
|
|
|
|
|
|
|
|
|||
|
YC631-2（C） |
63 |
1/6 |
120 |
1.4 |
2800 |
56 |
0.7 |
3 |
9 |
|||
|
YC632-2（C） |
1/4 |
180 |
1.9 |
2800 |
60 |
0.72 |
3 |
12 |
||||
|
YC633-2（C） |
1/3 |
250 |
2.4 |
2800 |
64 |
0.74 |
3 |
15 |
||||
|
YC634-2（C） |
1/2 |
370 |
3.4 |
2800 |
65 |
0.77 |
2.8 |
21 |
||||
|
YC631-4（C） |
1/8 |
90 |
1.6 |
1400 |
48 |
0.55 |
2.8 |
8 |
||||
|
YC632-4（C） |
1/6 |
120 |
1.9 |
1400 |
50 |
0.58 |
2.8 |
9 |
||||
|
YC633-4（C） |
1/4 |
180 |
2.5 |
1400 |
53 |
0.62 |
2.8 |
12 |
||||
|
YC710-2（C） |
71 |
1/3 |
250 |
2.4 |
2800 |
64 |
0.74 |
3 |
15 |
|||
|
YC711-2（C） |
1/2 |
370 |
3.4 |
2800 |
65 |
0.77 |
2.8 |
21 |
||||
|
YC712-2（C） |
3/4 |
550 |
4.7 |
2800 |
68 |
0.79 |
2.8 |
29 |
||||
|
YC710-4（C） |
1/4 |
180 |
2.5 |
1400 |
53 |
0.62 |
2.8 |
12 |
||||
|
YC711-4（C） |
1/3 |
250 |
3.1 |
1400 |
58 |
0.63 |
2.8 |
15 |
||||
|
YC712-4（C） |
1/2 |
370 |
4.3 |
1400 |
62 |
0.64 |
2.5 |
21 |
||||
|
YC801-2（C） |
80 |
1 |
750 |
6.1 |
2800 |
70 |
0.8 |
2.5 |
37 |
|||
|
YC802-2（C） |
1.5 |
1100 |
8.7 |
2800 |
72 |
0.8 |
2.8 |
60 |
||||
|
YC801-4（C） |
3/4 |
550 |
5.5 |
1400 |
66 |
0.69 |
2.5 |
29 |
||||
|
YC802-4（C） |
1 |
750 |
6.9 |
1400 |
68 |
0.73 |
2.5 |
37 |
|

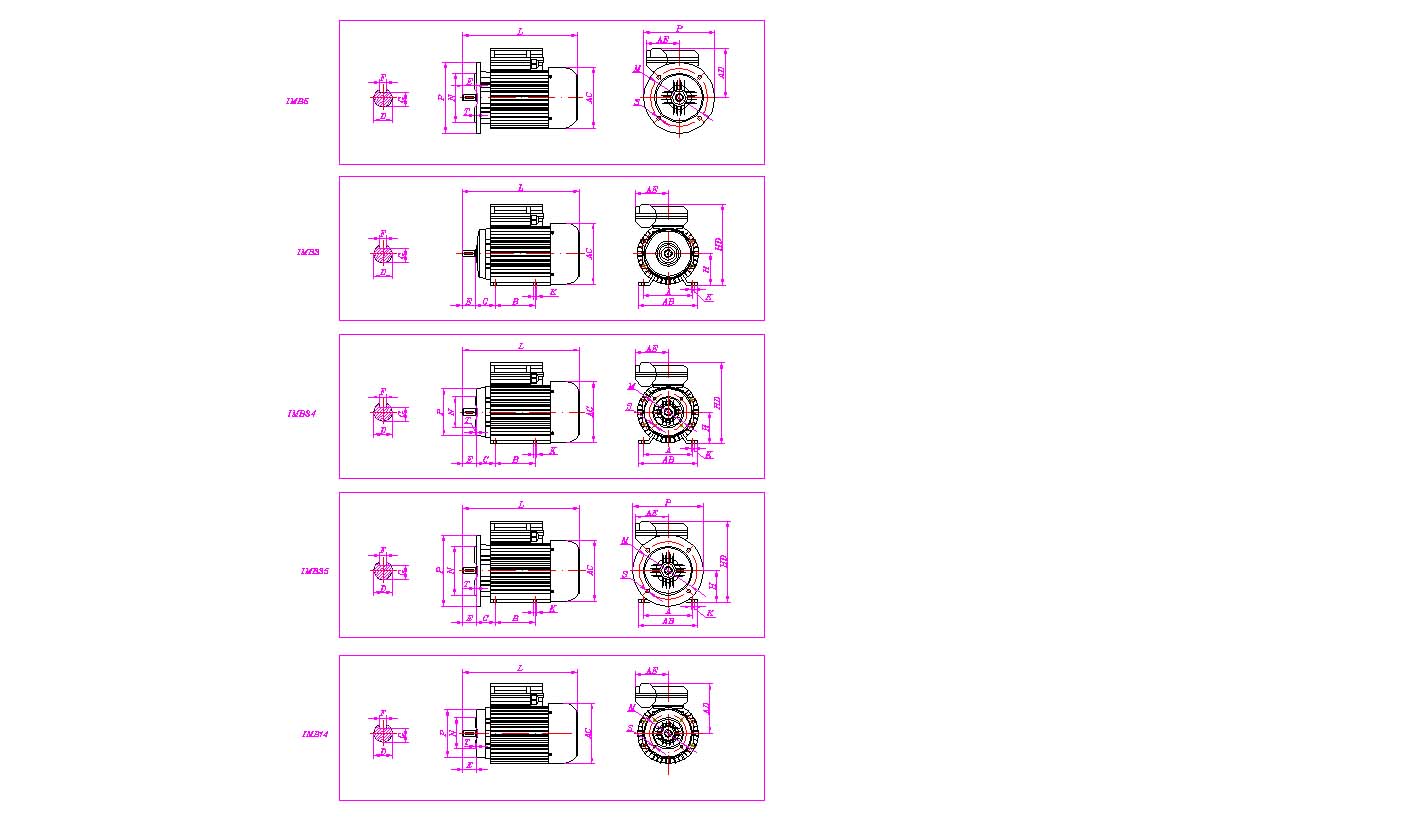

外形安裝尺寸 |
Outline & lnstallation Dimensions | ||||||||||||||||||||||||||||
|
機座尺寸 |
安裝尺寸 lnstallation Size(mm) |
安裝尺寸 lnstallation Size(mm)INB14 |
安裝尺寸 lnstallation Size(mm)IMB15 |
外形尺寸 Outline Dimension(mm) | |||||||||||||||||||||||||
|
Frame Size |
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
N |
P |
R |
S |
T |
M |
N |
P |
R |
S |
T |
AB |
AC |
AD |
HD |
L | |||
|
71 |
112 |
90 |
45 |
14 |
30 |
5 |
11 |
71 |
7 |
85 |
70 |
105 |
0 |
M6 |
2.5 |
130 |
110 |
160 |
0 |
10 |
3.5 |
145 |
145 |
125 |
205 |
255 | |||
|
80 |
125 |
100 |
50 |
19 |
40 |
6 |
15.5 |
80 |
10 |
100 |
80 |
120 |
0 |
M6 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
160 |
165 |
135 |
235 |
295 | |||
|
90S |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
115 |
95 |
140 |
0 |
M8 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
185 |
145 |
265 |
335 | |||
|
90L |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
115 |
95 |
140 |
0 |
M8 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
185 |
145 |
265 |
360 | |||
|
100L |
160 |
140 |
63 |
28 |
60 |
8 |
24 |
100 |
12 |
- |
- |
- |
- |
- |
- |
215 |
180 |
250 |
0 |
15 |
4.0 |
205 |
215 |
170 |
280 |
380 | |||
|
112M |
190 |
140 |
70 |
28 |
60 |
8 |
24 |
112 |
12 |
- |
- |
- |
- |
- |
- |
215 |
180 |
250 |
0 |
15 |
4.0 |
245 |
240 |
180 |
310 |
400 | |||
|
| |||||||||||||||||||||||||||||
